To Connect Seagate Drive via WiFi
Turn WiFi on
Select Onward Wireless HD
Input PW if necessary: OnwardC470126
Seagate Wireless Plus 500GB HD should be connected via WiFi
To Access Files on Seagate Wireless Plus 500GB HD
Direct a browser window to: www.seagatewireless.com
Browser-based interface opens to mage device and access files.
To Use Seagate Wireless Plus 500GB HD in the Finder
Select Go in Finder window menu bar
Select Connect to Server
Input Server Address: cifs://172.25.0.1
Input PW if necessary: OnwardC470126
Connect as Guest
Seagate Wireless Plus 500GB HD should now appear in Finder in a window: Public 01
To Connect iPad or iPhone to
1. Open your wireless network settings:
• For Apple devices, choose Settings > Wi-Fi.
• For Android devices, choose Settings > Wireless & networks > Wi-Fi settings.
2. Select Seagate Wireless Plus from the list of networks.
3. Press the Home button on your Apple or Android device.
4. Tap the Seagate Media icon to open the application.

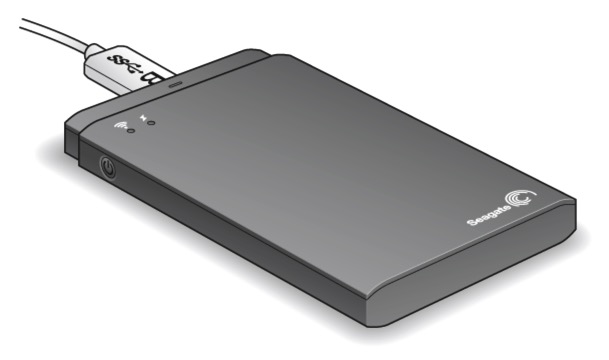

Indicator Lights
Power button: Press to turn on the Seagate Wireless Plus device. Press again to turn
off.
Wi-Fi LED: Indicates the Seagate Wireless Plus device’s wireless broadcasting state.
• Green blink: Seagate Wireless Plus device is starting up.
• Green solid: Seagate Wireless Plus device is Wi-Fi ready.
• Blue: Seagate Wireless Plus device is broadcasting.
Power LED:
• Green solid: Fully charged.
• Amber: Charging.
• Red: Battery is low; requires a charge. See “Charging the Battery” on page 31.
Adapter cable activity lights:
• White steady: Your Seagate Wireless Plus drive is connected to your computer and
ready for use.
• White blink: Activity.
• No lights: Your Seagate Wireless Plus drive is safe to remove from your computer, is
not connected or the lights have been disabled using the application.
Charging the Battery
The Seagate Wireless Plus device uses a rechargeable lithium-ion battery. A fully charged
battery provides up to ten hours of continuous streaming. However, the battery will lose its
charge faster when playing higher resolution video. When the device is in standby mode, the
battery retains its charge for up to 25 hours. Your Seagate Wireless Plus device enters
standby mode after five minutes of inactivity.

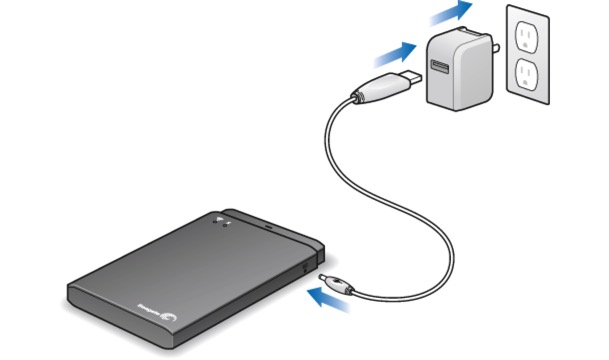

When the power LED turns red, your Seagate Wireless Plus device has about 15-20 minutes
of battery life and should be charged soon. The fastest way to charge the battery is to
connect the Seagate Wireless Plus device to a power outlet using the included USB to DC
power cable and the USB wall adapter. It takes about four hours to charge the battery.
Note: For safety purposes, the drive stops charging after four hours.
Your Seagate Wireless Plus device also charges when it is connected to a computer, but at a
slower rate.
The lithium-ion battery inside your Seagate Wireless Plus device is not user-replaceable. The
lifespan of rechargeable batteries can be affected by the number of charge cycles. See this
link for information about recycling and proper disposal.
